- Size: 15000L
- Place of Origin: tai'an
- Brand Name: LQMC
- Model Number: LU QIANG
- Weight: 2000.000 kg
Standard Specification
Model | Total volume (Liter) | Container inner dimension(mm) | Inside tank dimension(mm) | Total weight(ton) |

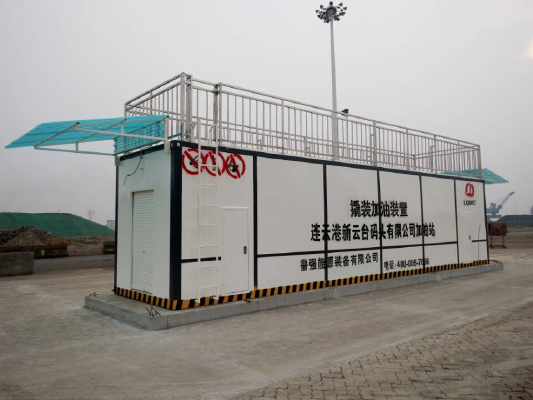

20feet mobile fuel station | 10,000 | 5895x2350x2390 | 4500x1500x1500 | 4.23 |
15000 | 5895x2350x2390 | 4300x2200x2200 | 4.55 | |
16000 | 5895x2350x2390 | 4500x2200x2200 | 4.74 | |
20,000 | 5895x2350x2390 | 4500x2150x2150 | 4.93 | |
40feet mobile fuel station | 30,000 | 12029x2350x2390 | 6800x2250x2000 | 6.95 |
36,000 | 12029x2350x2390 | 8150x2250x2000 | 7.25 | |
40,000 | 12029x2350x2390 | 8800x2280x2000 | 7.75 | |
50,000 | 12029x2350x2697 | 10500x2250x2150 | 8.39 | |
55000 | 12029x2350x2697 | 10500x2280x2300 | 9.35 |
NO. | CONTAINER DIMENTIONS | OIL TANK CAPACITY | OIL TANK DIMENSIONS(mm) | OIL TANK LAYERS | chamber/ oil type | THICKNESS |
1· | 20feet | 15000L | φ2200*4200 | single wall | single chamber | 5mm |
double chambers | 5mm | |||||
φ2270*4270 | double wall | single chamber | inside6,outside5 | |||
double chambers | inside6,outside5 | |||||
2· | 40feet | 30000L | φ2200*8300 | single wall | single chamber | 5mm |
double chambers | 5mm | |||||
φ2270*8370 | double wall | single chamber | inside6,outside5 | |||
double chambers | inside6,outside5 | |||||
3. The container including: |
|
|
|
| ||
